Aluminum Alloy Precision Load Cell - 0.1-3kg Capacity with High Side Load Tolerance WL-113
Product Description:
The WL-113 represents the pinnacle of high-precision weighing technology, delivering unmatched stability for electronic scales, analytical balances, commercial weighing systems, and industrial measurement applications.
Premium Construction:
• Aerospace-grade aluminum alloy housing ensures superior corrosion resistance
• Compact hermetically sealed design (IP65/IP68 optional) for micro-weight applications
• Ultra-lightweight construction optimized for 0.1kg-3kg measurement range
Engineered for Efficiency:
• Space-saving design
• Tool-free installation with integrated mounting features
• Maintenance-free operation with 10M+ cycle durability
Micro-Dispensing Specialization:
✓ Precision batching systems for pharma/cosmetics
✓ Micro-filling line quality control
✓ Food packaging portion control
✓ Laboratory sample measurement
✓ Automated production monitoring
Key Features:
✓ World's smallest footprint for 0.1-3kg range
✓ Medical-grade stainless steel load contacts
✓ EMI/RFI shielded cable options
✓ 24-month performance warranty
✓ RoHS/REACH compliant materials
Our Commitment:
At Brans, we pride ourselves on delivering tailored solutions that precisely match our clients' unique requirements. Recognizing that every application has distinct challenges, we offer customizable single point load cell configurations to ensure optimal performance for your specific needs.
Custom Solutions Available:
• Application-specific adaptations
• Modified specifications upon request
• Engineering support for specialized requirements
Specifications:
| Capacity | 50/100/300/500/600g,1/1.5/3kg |
| Rated output | 1.0±10mV/V,2.0±10mV/V |
| Accuracy class | C3 |
| Combined error | ±0.015%F.S. |
| Zero balance | ±2.0%mV/V |
| Non-linearity | ±0.015%F.S. |
| Hysteresis | ±0.02%F.S. |
| Repeatability | ±0.01%F.S. |
| Creep (30min) | ±0.0166%F.S. |
| Temperature effect on sensitivity | ±0.017%F.S./10℃ |
| Temperature effect on zero | ±0.02%F.S./10℃ |
| Input resistance | 1055±15Ω |
| Output resistance | 1000±15Ω |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15VDC |
| Compensated temp. range | -10~40℃ |
| Operation temp. range | -20~60℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| IP class | IP65 (Customizable) |
| Cable size | Φ4×2000mm (Customizable) |
| Material | Aluminum alloy |

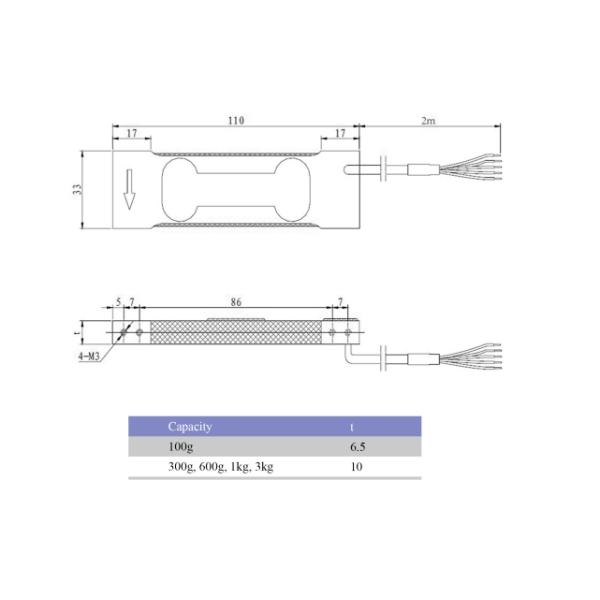

Dimension(MM):
Load Direction:
Wiring:
Load Cell Packaging & Shipping Standards
At Brans, we implement rigorous packaging protocols to guarantee your load cell arrives in perfect condition:
1. Multi-Layer Protective Packaging
• Primary Protection: Each unit is vacuum-sealed in moisture-proof barrier film
• Secondary Cushioning: High-density EPS foam molded to the load cell's contours
• Tertiary Security: Reinforced double-wall corrugated shipping container
2. Advanced Shock Mitigation System
• Multi-axis vibration damping with PE bubble wrap
• Edge protectors for all sensitive components
• "Fragile" and "This Side Up" labeling per ISTA standards
3. Secure Transit Assurance
• Tamper-evident security tape with company logo
• Barcoded shipping labels with QR tracking
• Certified weighing at dispatch for freight verification
4. Premium Logistics Network
• Partnered with DHL/FedEx/UPS for global coverage
• Real-time tracking updates via SMS/email
• 24/7 shipment monitoring by our logistics team
Post-Delivery Protocol:
• Recommended inspection within 48 hours
• Damage claims must include original packaging photos
